Products

12.8V LiFePO4 battery

Product Categories

new products

  • FT48100E

    FT48100E 48V 100Ah LiFePO4 battery pack for solar storage system

    FT48100E 48V 100Ah LiFePO4 battery pack for solar storage system S/N Details Parameters Remarks 1 Nominal voltage 51.2V Mean Operation Voltage 2 Rated capacity Typical 100Ah Standard discharge(0.2C) after standard charge Minimum 97Ah 3 Charge Charge voltage 58.4±0.2V Charge Moe 0.2C to 58.4V, then 58.4V to 0.02C (CC/CV) Standard Charge current 20A Max charge current 50A Charge cut-off voltage 58.4±0.2V Recommended float charge voltage ( for standby use) 55.2±0.1V 4 Discharge Standard discharge current 20A Max continuous discharge current 80A Max. Pulse current 100A (<30S) Discharge Cut-off voltage 32V 5 Cycle life ≥ 2000 cycles  0.2C 100% DOD 6 Operation Temperature Range Charge:0~45℃ 60±25%R.H. Bare Cell Discharge:-20~60℃ 7 Storage Temperature Range 0~35℃ 60±25%R.H.               at the shipment state 8 Weight Approx: 50.1kg 9 Size 243 X 258 X 721mm 10 Plastic Case Metal

    Read More
  • FT1207E 12V 7AH LiFePO4 battery pack replacement lead acid battery

    FT1207E 12V 7AH LiFePO4 battery pack replacement lead acid battery

    FT1207E 12V 7AH LiFePO4 battery pack is a high power, high reliablibilty lifepo4 battery with more than 2000 cycles

    Read More
  • FT1212E

    FT1212E 12V 12Ah LiFePO4 battery pack replacement lead acid battery

    FT1212E 12V 12Ah LiFePO4 battery pack is a high power, high reliablity lifepo4 battery with more than 2000 cycles

    Read More
  • FT1230E 12V 30Ah LiFePO4 Battery pack replaced lead acid battery

    FT1230E 12V 30Ah LiFePO4 Battery pack replaced lead acid battery

    FT1230E 12V 30Ah LiFePO4 Battery pack replaced lead acid battery S/N   Details   Parameters   Remarks   1 Nominal voltage 12.8V Mean Operation Voltage 2 Rated capacity Typical 30Ah Standard discharge(0.2C) after standard charge 3 Charge Charge voltage 14.6±0.2V Charge Mode 0.2C to 14.6V, then 14.6V to 0.02C (CC/CV) Standard Charge current 6A Max charge current 15A Charge cut-off voltage 14.6±0.2V 4 Discharge Standard discharge current 6A Max continuous discharge current 30A Max. Pulse current 60A (<3S) Discharge Cut-off voltage 10V 5 Cycle life ≥ 2000 cycles  0.2C 100% DOD 6 Operation Temperature Range Charge:0~45℃ 60±25%R.H. Bare Cell Discharge:-20~60℃ 7 Storage Temperature Range 0~35℃ 60±25%R.H.               at the shipment state 8 Weight Approx:3.9kg   9 Size 165 x 175 x 125 mm   10 Plastic Case ABS

    Read More
  • FT12100E

    LiFePO4 battery 12V 100Ah 200Ah solar system lithium battery for 40w street light

    LiFePO4 battery pack 12V 100Ah 200Ah used for solar system and choose high quality 3.2V 100Ah lifepo4 cells.

    Read More
  • FT12100E

    FT12100E 12V 100Ah LiFePO4 battery pack replacement lead acid battery

    12V 100Ah lifepo4 battery is a high power, high capacity, high reliability lifepo4 battery

    Read More

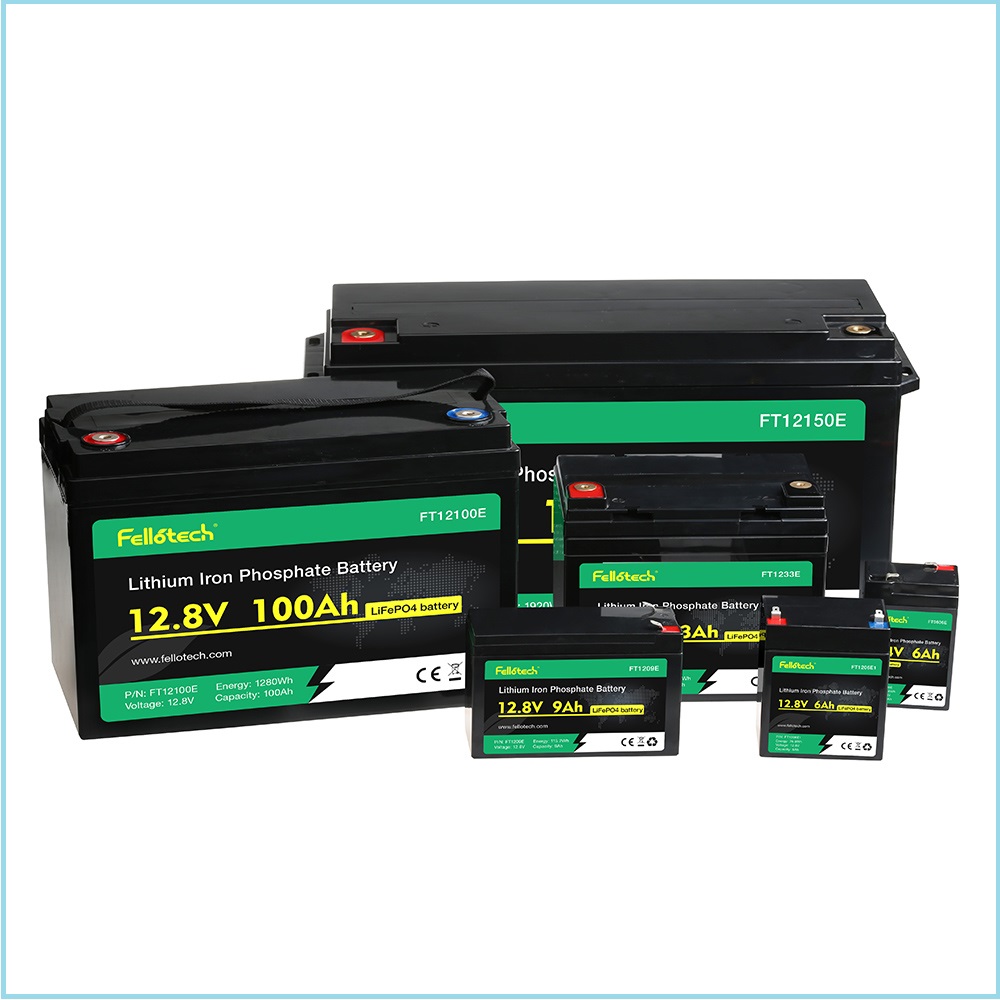

12.8V LiFePO4 battery packs


Key Features:

  • LiFePO4 battery named Lithium iron phosphate battery
  • Relacement of lead acid battery
  • It operates 12.8V high voltage
  • High discharge for more powerful device,
  • Excellant cost performance and long cycle life, more than 2000 cycles.
  • Flexible design, capacity range from 3Ah to 100Ah.
  • Environmental friendly.

Application:

  • Solar camping light, solar street light, solar power system
  • Electric bikes, Motorcyles, Tricycles,
  • Golf car, Electric vehicles
  • Marine Boat, fishing tools
  • Telecom communicaion



Model Nominal Voltage (V) Nominal Capacity (Ah) Internal Impedance (mΩ) Dimension ( L x W x H mm) Weight (Kg)
FT1207E 12.8 7 90 151 X 94 X 65mm 1.06
FT1210E 12.8 10 100 151 x 98 x 95 1.55
FT1212E 12.8 12 100 151 X 98 X 101mm 1.55
FT1220E 12.8 20 100 181 X 77 X 161mm 2.90
FT1230E 12.8 30 100 165 X 175 X 125 3.90
FT1233E 12.8 33 100 195 x 130 x 156 4.90
FT1240E 12.8 40 100 197 x 165 x 170 5.70
FT1250E 12.8 50 100 229 x 138 x 212 6.70
FT1260E 12.8 60 100 229 x 138 x 212 7.90
FT1280E 12.8 80 100 260 x 169 x213 mm 10.2
FT12100E 12.8 100 100 322 X 165 X 220 13.1
FT12150E 12.8 150 100 522 X 238 X 222 21.00
FT12200E 12.8 200 100 522 X 269 X 220mm 25.20
