home Lithium Polymer Battery 3.7V 30mAh Lithium Polymer Battery 301020 With UL Certificate

Product Categories

new products

Small lithium polymer battery 301020
Small lithium polymer battery 301020

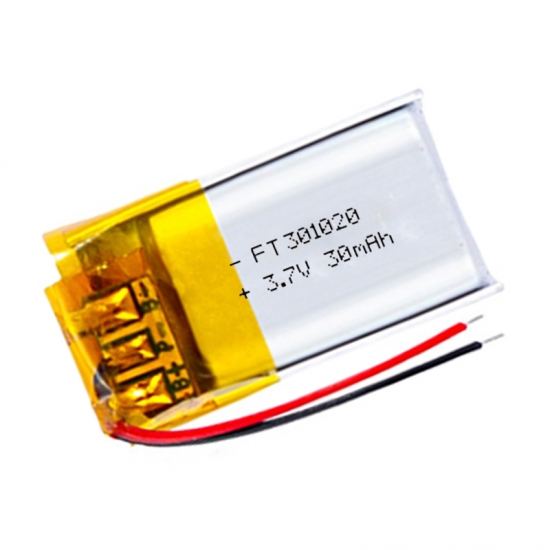

3.7V 30mAh Lithium Polymer Battery 301020 With UL Certificate

  • Item NO.:

    FT301020P

  • Model number:

    FT301020P/3.7V/30mAh

  • Nominal voltage:

    3.7V

  • Capacity:

    30mAh

  • Dimension:

    3.2 X 11 X 20.8mm

  • Application:

    GPS, Bluetooth player, handheld device
  • Product Details

3.7V 30mAh Lithium Polymer Battery 301020 With UL Certificate



S/N

Details



Parameters



Remarks



1

Rated voltage

3.7V



2

Rated capacity

3000mAh

discharge with 0.2C to 2.75V after fully charge within 1h, measuring the discharge time

3

Limited charge voltage

4.2V



4

Internal resistance

≤180mΩ



5

charge mode

C.C/C.V.



6

Standard charge current

600mA

0.2C

7

Max Charge Current

3000mA

1C

8

Standard discharge current

600mA

0.2C

9

Max discharge current

Continuous：3000mA

1C

10

Working temperature

charging

0~45℃



discharging

-10~60℃

11

Storage temperature

1 Month

-10~45℃

Charge to 40%~50% of capacity when storage

6 months

-10~30℃

12

Storage humidity

45%~75％

relative humidity

13

Weight

Approx 68g



14

Cycle life

300 times

capacity≥80%
