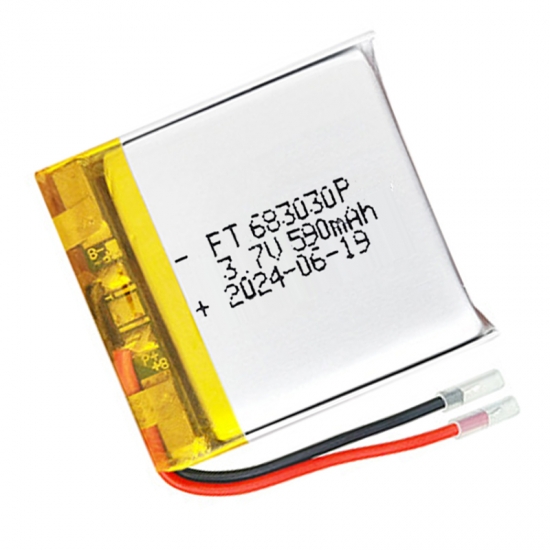

3.7V 590mAh 683030 lithium polymer battery

683030 lithium polymer battery with 3.7V 590mAh for toy, story machine
  • Item NO.:

    FT683030P
  • Model number:

    FT683030P
  • Nominal voltage:

    3.7V
  • Capacity:

    590mAh
  • Battery cell:

    FT683030P/3.7V/590mAh
  • Dimension:

    6.8 x 30.5 x 30.8mm
  • Application:

    toy, story machine
  • Product Details

3.7V 590mAh 683030 lithium polymer battery


S/N

Details



Parameters



Remarks



1

Rated voltage

3.7V



2

Rated capacity

590mAh

discharge with 0.2C to 2.75V after fully charge within 1h, measuring the discharge time

3

Limited charge voltage

4.2V



4

Internal resistance

≤180mΩ



5

charge mode

C.C/C.V.



6

Standard charge current

118mA

0.2C

7

Max Charge Current

590mA

1C

8

Standard discharge current

118mA

0.2C

9

Max discharge current

Continuous590mA

1C

10

Working temperature

charging

0~45



discharging

-10~60

11

Storage temperature

1 Month

-10~45

Charge to 40%~50% of capacity when storage

6 months

-10~30

12

Storage humidity

45%~75

relative humidity

13

Weight

Approx 11.0g



14

Cycle life

300 times

capacity≥80%
