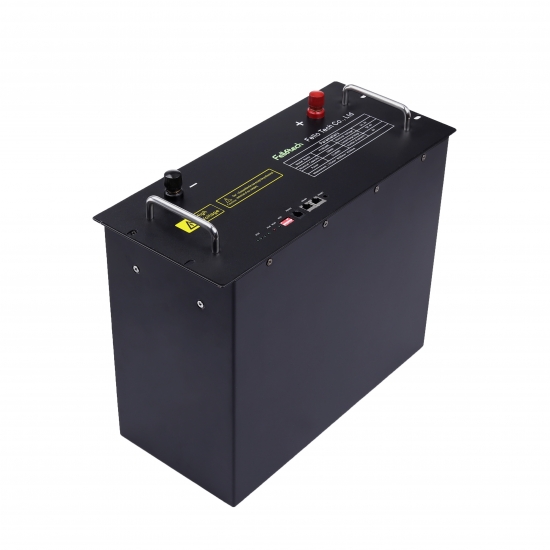

FT48100E 48V 100Ah LiFePO4 battery pack for solar storage system

  • Item NO.:

    FT48100E
  • Model number:

    FT48100E
  • Nominal voltage:

    48V
  • Capacity:

    100Ah
  • Dimension:

    243 X 258 X 721mm
  • Application:

    Solar Storage system, E-boat
  • Product Details

FT48100E 48V 100Ah LiFePO4 battery pack for solar storage system



S/N

Details

Parameters

Remarks

1

Nominal voltage

51.2V

Mean Operation Voltage

2

Rated capacity

Typical

100Ah

Standard discharge(0.2C)

after standard charge

Minimum

97Ah

3

Charge

Charge voltage

58.4±0.2V

Charge Moe

0.2C to 58.4V, then 58.4V to 0.02C (CC/CV)

Standard Charge current

20A

Max charge current

50A

Charge cut-off voltage

58.4±0.2V

Recommended float charge voltage ( for standby use)

55.2±0.1V

4

Discharge

Standard discharge current

20A

Max continuous discharge current

80A

Max. Pulse current

100A (<30S)

Discharge Cut-off voltage

32V

5

Cycle life

≥ 2000 cycles

 0.2C 100% DOD

6

Operation Temperature

Range

Charge:0~45℃

60±25%R.H. Bare Cell

Discharge:-20~60℃

7

Storage Temperature

Range

0~35℃

60±25%R.H.               at the shipment state

8

Weight

Approx: 50.1kg

9

Size

243 X 258 X 721mm

10

Plastic Case

Metal


Send a Message
If you need any lithium battery or battery packs, please send us your detailed information about the voltage, the capacity and the size.
Thanks for your interest in our products, we will provide the proper battery solution to meet you requirement.
