home Lithium ion Battery 3.7V Lithium ion battery ICR26650 3.7V 5000mAh Li-ion battery cell used for solar street, solar storage system, electric bike etc

Product Categories

new products

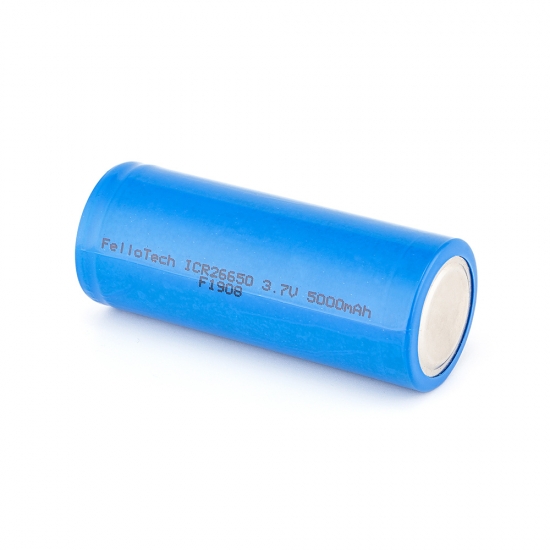

ICR26650 3.7V 5000mAh Li-ion battery cell used for solar street, solar storage system, electric bike etc

  • Item NO.:

    ICR26650
  • Model number:

    ICR26650
  • Nominal voltage:

    3.7V
  • Capacity:

    5000mAh
  • Battery cell:

    ICR26650/3.7V/5000mAh
  • Dimension:

    Φ26.25 x 65.5mm
  • Application:

    Solar Street light, E-scooter, E-bike
  • Product Details

ICR26650 3.7V 5000mAh Li-ion battery cell used for solar street, solar storage system, electric bike etc


S/N

Details

Parameters

Remarks

1

Rated voltage

3.7V

2

Rated capacity

5000mAh

discharge with 0.2C to 2.75V after fully charge within 1h, measuring the discharge time

3

Limited charge voltage

4.2V

4

Internal resistance

≤60mΩ

5

charge mode

C.C/C.V.

6

Standard charge current

1000mA

0.2C

7

Max Charge Current

5000mA

1C

8

Standard discharge current

1000mA

0.2C

9

Max Discharge current

Continuous5000mA

1C

10

Working temperature

charging

0~45

discharging

-10~60

11

Storage temperature

1 Month

-10~45

Charge to 40%~50% of capacity when storage

6 months

-10~30

12

Storage humidity

45%~75

relative humidity

13

Weight

Approx 94g

14

Cycle life

300 times

capacity≥80%

Send a Message
If you need any lithium battery or battery packs, please send us your detailed information about the voltage, the capacity and the size.
Thanks for your interest in our products, we will provide the proper battery solution to meet you requirement.
