  • FT48100E

    FT48100E 48V 100Ah LiFePO4 battery pack for solar storage system

    FT48100E 48V 100Ah LiFePO4 battery pack for solar storage system S/N Details Parameters Remarks 1 Nominal voltage 51.2V Mean Operation Voltage 2 Rated capacity Typical 100Ah Standard discharge(0.2C) after standard charge Minimum 97Ah 3 Charge Charge voltage 58.4±0.2V Charge Moe 0.2C to 58.4V, then 58.4V to 0.02C (CC/CV) Standard Charge current 20A Max charge current 50A Charge cut-off voltage 58.4±0.2V Recommended float charge voltage ( for standby use) 55.2±0.1V 4 Discharge Standard discharge current 20A Max continuous discharge current 80A Max. Pulse current 100A (<30S) Discharge Cut-off voltage 32V 5 Cycle life ≥ 2000 cycles  0.2C 100% DOD 6 Operation Temperature Range Charge:0~45℃ 60±25%R.H. Bare Cell Discharge:-20~60℃ 7 Storage Temperature Range 0~35℃ 60±25%R.H.               at the shipment state 8 Weight Approx: 50.1kg 9 Size 243 X 258 X 721mm 10 Plastic Case Metal

    Read More
  • FT1207E 12V 7AH LiFePO4 battery pack replacement lead acid battery

    FT1207E 12V 7AH LiFePO4 battery pack replacement lead acid battery

    FT1207E 12V 7AH LiFePO4 battery pack is a high power, high reliablibilty lifepo4 battery with more than 2000 cycles

    Read More
  • FT1212E

    FT1212E 12V 12Ah LiFePO4 battery pack replacement lead acid battery

    FT1212E 12V 12Ah LiFePO4 battery pack is a high power, high reliablity lifepo4 battery with more than 2000 cycles

    Read More
  • FT1230E 12V 30Ah LiFePO4 Battery pack replaced lead acid battery

    FT1230E 12V 30Ah LiFePO4 Battery pack replaced lead acid battery

    FT1230E 12V 30Ah LiFePO4 Battery pack replaced lead acid battery S/N   Details   Parameters   Remarks   1 Nominal voltage 12.8V Mean Operation Voltage 2 Rated capacity Typical 30Ah Standard discharge(0.2C) after standard charge 3 Charge Charge voltage 14.6±0.2V Charge Mode 0.2C to 14.6V, then 14.6V to 0.02C (CC/CV) Standard Charge current 6A Max charge current 15A Charge cut-off voltage 14.6±0.2V 4 Discharge Standard discharge current 6A Max continuous discharge current 30A Max. Pulse current 60A (<3S) Discharge Cut-off voltage 10V 5 Cycle life ≥ 2000 cycles  0.2C 100% DOD 6 Operation Temperature Range Charge:0~45℃ 60±25%R.H. Bare Cell Discharge:-20~60℃ 7 Storage Temperature Range 0~35℃ 60±25%R.H.               at the shipment state 8 Weight Approx:3.9kg   9 Size 165 x 175 x 125 mm   10 Plastic Case ABS

    Read More
  • FT12100E

    LiFePO4 battery 12V 100Ah 200Ah solar system lithium battery for 40w street light

    LiFePO4 battery pack 12V 100Ah 200Ah used for solar system and choose high quality 3.2V 100Ah lifepo4 cells.

    Read More
  • FT12100E

    FT12100E 12V 100Ah LiFePO4 battery pack replacement lead acid battery

    12V 100Ah lifepo4 battery is a high power, high capacity, high reliability lifepo4 battery

    Read More

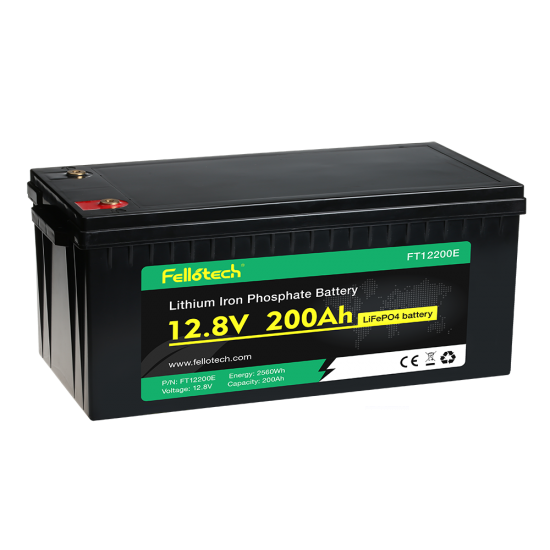

Deep cycle rechargeable lifepo4 prismatic batteries lifepo4 12v 200ah solar panel battery

  • Item NO.:

    FT12200E
  • Model number:

    FT12200E
  • Nominal voltage:

    12.8V
  • Capacity:

    200Ah
  • Dimension:

    522X 238 X 218 mm
  • Application:

    Solar Storage system, E-boat
  • Product Details
Deep cycle rechargeable lifepo4 prismatic batteries liFePO4 12v 200ah solar panel battery

S/N



Details



Parameters



Remarks



1

Nominal voltage

12.8V

Mean Operation Voltage

2

Rated capacity

Typical

200Ah

Standard discharge0.2C

after standard charge

3

Charge

Charge voltage

14.6±0.2V

Charge Mode

0.2C to 14.6V, then 14.6V to 0.02C (CC/CV)

Standard Charge current

40A

Max charge current

100A

Charge cut-off voltage

14.6±0.2V

4

Discharge

Standard discharge current

40A

Max continuous discharge current

100A

Max. Pulse current

120A (3S)

Discharge Cut-off voltage

10V

5

Cycle life

 2000 cycles

 0.2C 100% DOD

6

Operation Temperature

Range

Charge0~45

60±25%R.H. Bare Cell

Discharge-20~60

7

Storage Temperature

Range

0~35

60±25%R.H.               at the shipment state

8

Weight

Approx27kg



9

Size

522 x 238 x 218 mm



10

Plastic Case

ABS


Send a Message
If you need any lithium battery or battery packs, please send us your detailed information about the voltage, the capacity and the size.
Thanks for your interest in our products, we will provide the proper battery solution to meet you requirement.
